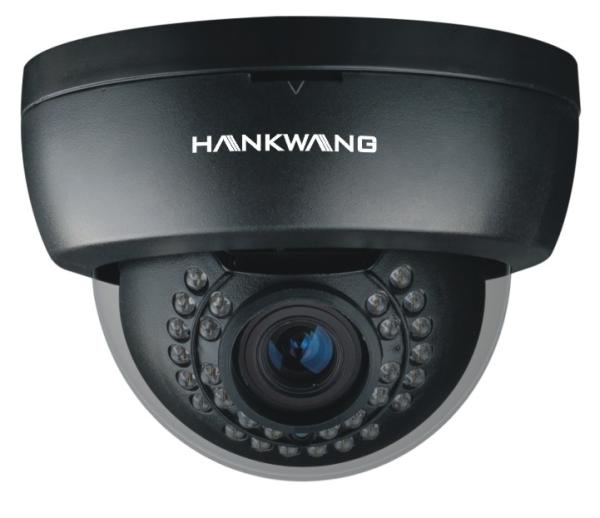

Name: IR Digital Color CCD Cameras
Brand: Hankwang
Price: 1 USD

Place of Origin : China

Brand Name : Hankwang

Certification : FCC ROHS CE

MOQ : 100PCS

Delivery Time : 7-15working days

Payment Terms : T/T in advance westem union L/C

Supply Ability : 30000-50000PCS/MONTH

Price : Negotiable

Product Name : Color CCD Camera

Features : Weatherproof/High Definition/Wall Mount Supported/Real Time Transmission

High Resolution : 700TV Lines

Image Sensor : 1/3” Sony 960H Exview CCD

Minimum Illumination : Color:0.3Lux, BW:0.1lux

Waterproof Level : IP66

Contact Now

Main features:

1.1/3” Sony 960H Exview CCD

2.High Resolution:700TV Lines

3.Digital Wide Dynamic Range

4.2D+3D DNR,HLC,AGC

5.DIS(Digital Image Stabilizer)

6.Controlled by OSD menu

7.Intelligent motion detection

8.2.8-12mm /4-9mm varifocal lens(Option)

9.DC12V/Daul power voltage(Option)

Technical parameters:

Specifications	HKD-80530HVS(Effio-S)
Model	NTSC	PAL
Imaging Sensor	1/3” Sony 960H Exview CCD
Scanning System	2:1 Interlace
Scanning Frequency	15.734KHz(H), 59.94Hz(V)	15.625KHz(H), 50Hz(V)
Total number of pixels	1108(H)x508(V)	1108(H)x596(V)
S/N Ratio	More than 50dB(AGC off)
Video Output	1.0Vp-p(75ohm, composite)
Resolution	Max 700TV Lines in color @ HR 7 mode (750TV Lines in B/W @HR 7 mode)
Min. Illumination	Color:0.3Lux, BW:0.1lux Color DSS:0.0005lux, BW DSS:0.0002lux, IR ON :0.00lux
Exposure	Auto/Shutter PRI/Manual
White Balnace	ATW/One Push/ Manual / Indoor/ Outdoor/Auto
BLC	On / Off
AGC	Off/On(Max 30dB)
Shutter Speed	1/60~1/100, 000sec	1/50~1/100, 000sec
Flickerless	On/Off
Brightness	1~15 steps
DNR	On/Off/Manual
WDR	On/Off
HLC	On/Off
BLC	On/Off
E.Zoom	E-Zoom(Max x2~x32)/E-Pan/E-Tilt
Day&Night	Day/Night/Auto/Ext
Pivacy Mask	Off/16 positions
Chroma	Low/Mid/High
Motion Detection	On / Off (3 Zone Selectable)
Effect	Off/Negative/B/W
Communication	Baud Rate:2400/4800/9600/19200/38400/57600/115200 Protocol:VISCA/ Pelco - D & Pelco - P & VISCA
Sharpness	1~16 steps
OSD	Built-in
Lens	2.8-12mm /4-9mm varifocal lens(Option)
IR LEDs	30pcs
Operating Temperature	(-10°C ~ + 50°C)
Supplied Voltage	DC12 ± 10%
Dimension	134mmx134mmx97mm
Weight	300g
Options	DC12V/Daul power voltage(Option)
