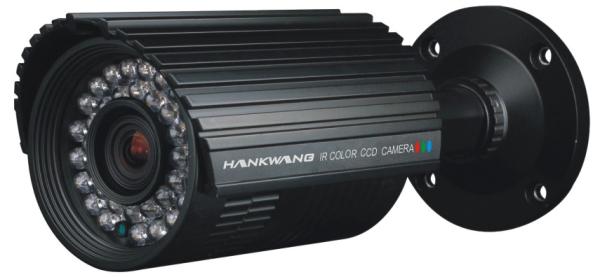

High Resolution NTSC / PAL SONY CCD Waterproof CCTV Camera Built In OSD

Name: High Resolution NTSC PAL SONY CCD Waterproof CCTV Camera Built In OSD
Brand: Hankwang
Price: 1 USD

High Resolution NTSC / PAL SONY CCD Waterproof CCTV Camera Built In OSD Manufactures

Place of Origin : China

Brand Name : Hankwang

Certification : FCC,ROHS,CE

MOQ : 100pcs

Delivery Time : 7-15 working days

Payment Terms : T/T in advance , Western Union ,L/C

Supply Ability : 30000-50000pcs/month

Price : Negotiable

Product Name : Waterproof CCTV Camera

Waterproof Level : IP66

Features : Weatherproof/High Definition/Wall Mount Supported/Real Time Transmission

Image Sensor : 1/3 SONY CCD

Horizontal Resolution : 520TV Lines

Min.Illumination : 0.00Lux (IR ON)

Contact Now

High Resolution NTSC / PAL SONY CCD Waterproof CCTV Camera Built In OSD

Quick Detail:

1. Special Features:Weatherproof/High definition/Wall mount supported/Real time transmission
2. Waterproof Level: IP66
3. White Balance:Auto(indoor/outdoor)
4. Application:Family,office,residential,factories etc.

Main feature:

Model	HKR-30836HVB3
Image Sensor	1/3 SONY CCD
Effective Pixels	NTSC : 768 (H) x 494 (V)
	PAL : 752 (H) x 582 (V)
Horizontal Resolution	520TV Lines
Sync System	Internal
Scanning System	2:1 Interlaced NTSC 525 LinesPAL 625 Lines
Video Output	1.0Vp-p Composite. 75 Ohms
S/N Ratio	More than 48 dB
Min.Illumination	0.00Lux (IR ON)
Back Light Compensation	Auto
AGC Control	Auto
White Balance	Auto
Gamma Correction	r=0.45
Electronic Shutter Time	NTSC : 1/60-1/100, 000 sec
	PAL : 1/50-1/100, 000 sec
Led	36pcs
OSD	Built in
Lens	9-22mm varifocal Lens
IR-CUT filter	Built in
Operating temperature	- 10℃ ～ 50℃
Power Supply	DC 12V
Dimensions	96230115 mm
Weight	1100g

Installation system

Product Tags:

CCTV Surveillance Camera

CCTV Surveillance Cameras

High Resolution NTSC / PAL SONY CCD Waterproof CCTV Camera Built In OSD Images
