Color IR Bullet Cameras

Name: Color IR Bullet Cameras
Brand: Hankwang
Price: 1 USD

Place of Origin : China

Brand Name : Hankwang

Model Number : HKR-30136HVN1

Certification : FCC,ROHS,CE

MOQ : 100pcs

Delivery Time : 7-15 working days

Payment Terms : T/T in advance , Western Union ,L/C

Supply Ability : 30000-50000pcs/month

Price : Negotiable

Product Name : IR Bullet Cameras

Min.Illumination : 0.00 lux ( IR ON )

Waterproof Level : IP66

Features : Weatherproof/High Definition/Wall Mount Supported/Real Time Transmission

Resolution : COLOR : 560 TV Lines (Typ.)

Sensor : 1/3" Sony Color Super HAD CCD, 410K Pixels

Contact Now

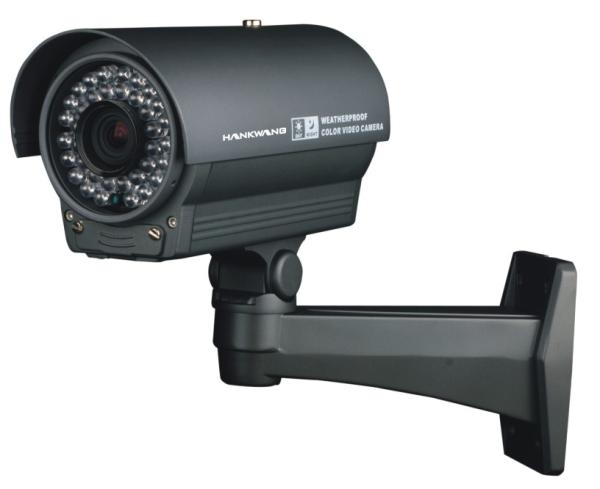

IR Color Bullet Cameras

Quick Detail:

1. Special Features:Weatherproof/High definition/Wall mount supported/Real time transmission
2. Waterproof Level: IP66
3. White Balance:Auto(indoor/outdoor)
4. Application:Family,office,residential,factories etc.

Main feature:

1/3" Sony Color Super HAD CCD
High Resolution : 560 TV Lines
Sens-up X256
Day & Night, Privacy Function
Anti-Ghost DNR
SS-WDR (DRC)
Controlled by OSD Menu

Specifications :

Specifications	HKR-30136HVN1
Image Sensor	1/3" Sony Color Super HAD CCD, 410K Pixels
Total Pixels	N: 811(H) x 508 (V) / P: 795 (H) x 596 (V)
Effective Pixels	N; 768(H) x 494 (V) / P: 752 (H) x 582 (V)
Scanning System	N: 525 (H) Lines, 2:1 Interlaced / P :625 (H) Lines, 2:1 Interlaced
Synchronization	Internal
Resolution	COLOR : 560 TV Lines (Typ.)
Video Output	VBS : 1.0Vp-p, 75Ω composite
S/N Ratio (Y signal)	52dB (AGC Off, Weight On)
Minimum Illumination	0.00 lux ( IR ON )
Backlight Compensation	BLC / D-WDR/ HLM / OFF Selectable
Day & Night Selection	COLOR / Black & White / EXT
Gain Control	LOW / MIDDLE / HIGH / OFF Selectable
White Balance	ATW1 / ATW2 / AWC / Manual
	Outdoor (1, 800°K ~ 10, 500°K)
	Indoor (4, 500°K ~ 8, 500°K)
Electronic Shutter Speed	N : 1/60 sec ~ 1/120, 000 sec / P :1/50 sec ~ 1/120, 000 sec
Sense-Up	ON / OFF (Selectable Limit x2 ~ x256)
OSD	Built-in
Motion Detection	ON(16x12 grid) / OFF
IRIS Control	DC
Lens Shading	/
DNR	ON (0 ~ 32 Level Adjustable)
Privacy	ON / OFF (8 Zone)
Mirror (H-REV)	ON / OFF
Flip (V-REV)	ON / OFF
STILL	ON / OFF
Sharpness	ON / OFF (Level Adjustable)
Saturation	ON / OFF (Level Adjustable)
Digital Zoom	ON (x1 ~ x256) / OFF
Parking Line	/
Communication	/
Blemish Compensation	128 points
Lens	3.5~16mm auto iris Korean lens
IR LED	36pcs
Operating Temp.	-10℃ ~ +50℃ [14°F ~ 122°F]
Operating Humidity	30 ~ 80% RH
Power Source	DC 12V ± 10%, Max. 2.0W
Dimensions	303mmX102mmX231mm
Weight	1500
Options	IR-CUT filter
