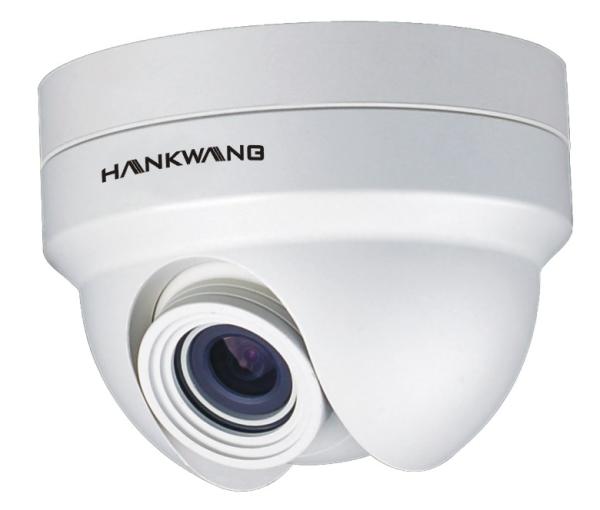

Custom Weatherproof / High Definition Mini CCTV Cameras For Home / Office

Name: Custom Weatherproof High Definition Mini CCTV Cameras For Home Office
Brand: Hankwang
Price: 1 USD

Custom Weatherproof / High Definition Mini CCTV Cameras For Home / Office Manufactures

Place of Origin : China

Brand Name : Hankwang

Model Number : HKD-603A

Certification : FCC,ROHS,CE

MOQ : 100pcs

Delivery Time : 7-15 working days

Payment Terms : T/T in advance , Western Union ,L/C

Supply Ability : 30000-50000pcs/month

Price : Negotiable

Product Name : Mini CCTV Cameras

Image Sensor : 1/3 SONY CCD

Horizontal Resolution : 420TV Lines

Sync System : Internal

Min.Illumination : 0.001 Lux (IR ON)

Lens : 3.6mm Lens

Contact Now

Custom Weatherproof / High Definition Mini CCTV Cameras For Home / Office

Quick Detail:

1. Special Features:Weatherproof/High definition/Wall mount supported/Real time transmission
2. Waterproof Level: IP66
3. White Balance:Auto(indoor/outdoor)
4. Application:Family,office,residential,factories etc.

Specification

Model	HKD-603A
Image Sensor	1/3 SONY CCD
Effective Pixels	NTSC : 510 (H) x 492 (V)
	PAL : 500 (H) x 582 (V)
Horizontal Resolution	420TV Lines
Sync System	Internal
Scanning System	2:1 Interlaced NTSC 525 LinesPAL 625 Lines
Video Output	1.0Vp-p Composite. 75 Ohms
S/N Ratio	More than 48 dB
Min.Illumination	0.15Lux
Back Light Compensation	Auto
AGC Control	Auto
White Balance	Auto
Gamma Correction	r=0.45
Electronic Shutter Time	NTSC : 1/60-1/100, 000 sec
	PAL : 1/50-1/100, 000 sec
Led	No
OSD	No
Lens	3.6mm lens
Operating temperature	- 10℃ ～ 50℃
Power Supply	DC 12V
Dimensions	707055 mm
Weight	210g

Product Tags:

CCTV Surveillance Camera

CCTV Surveillance Cameras

Custom Weatherproof / High Definition Mini CCTV Cameras For Home / Office Images
